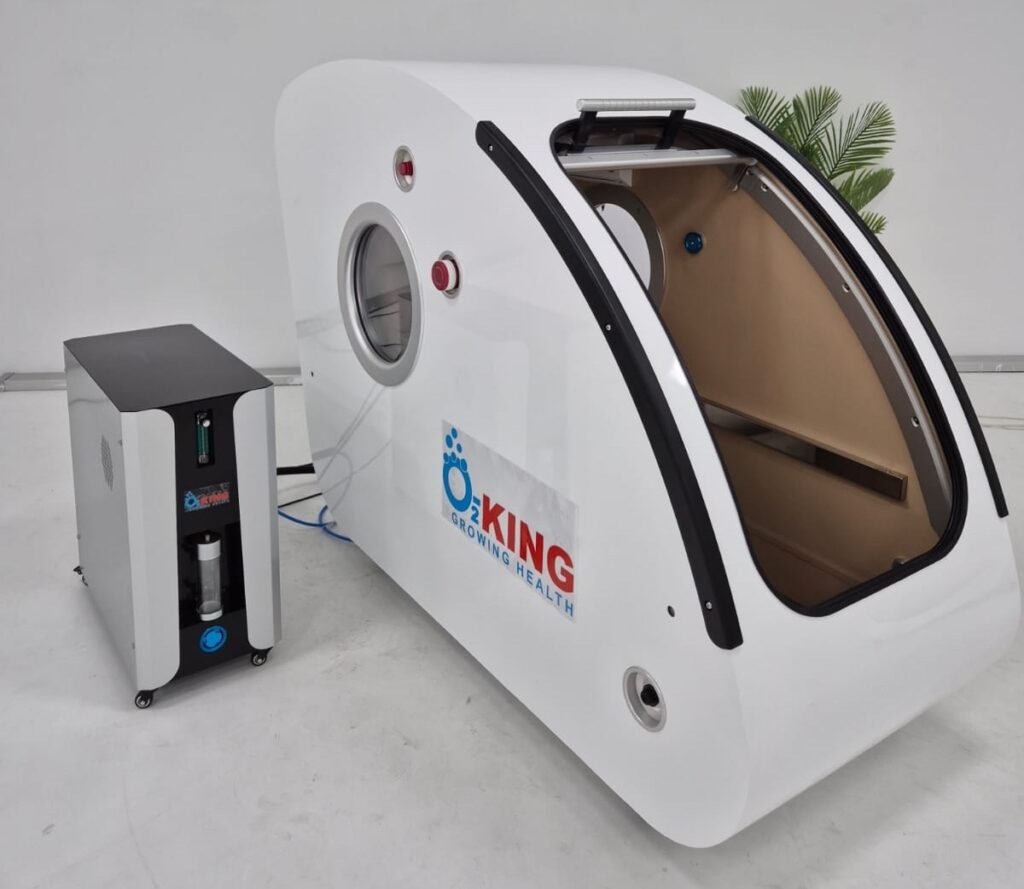

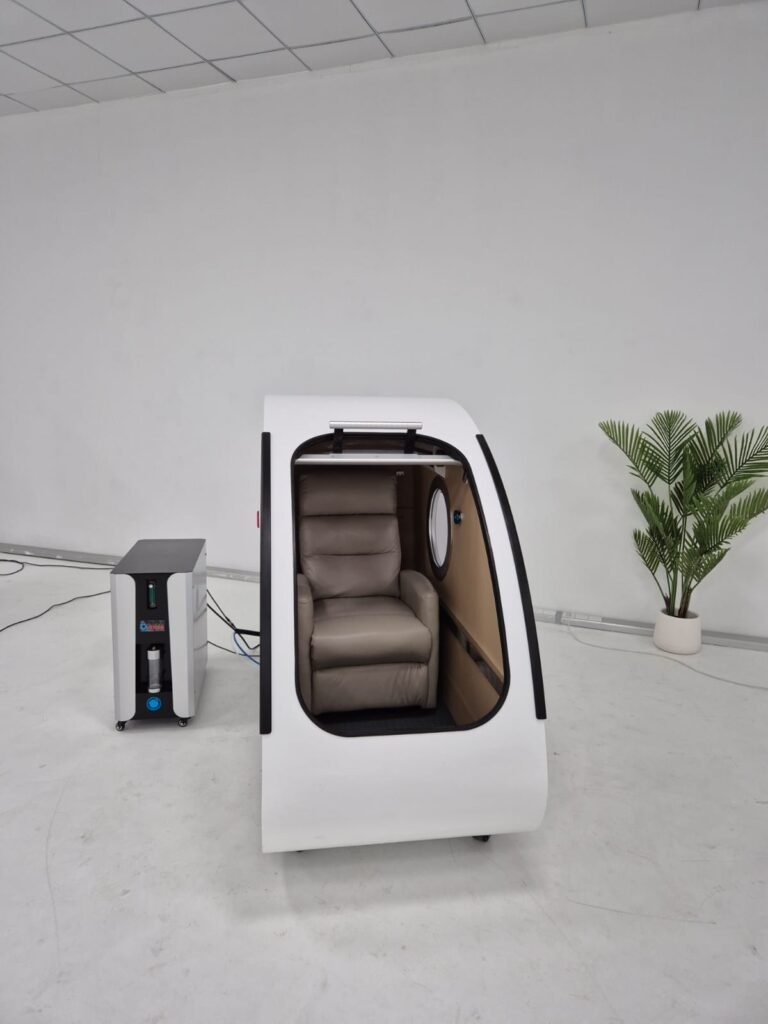

HBOT 2.0ATA Hard Sitting Hyperbaric Oxygen Cabin

Features

  • 2.0 ATA working pressure
  • Sliding inlet door, pressure seal, door opening and lowering system
  • Two way communication intercom system
  • Automatic pneumatic control system
  • Two large transparent windows on both sides
  • Easy installation and operation
  • Provides 95%-98% oxygen under pressure through oxygen earphones/masks
  • Internal pressure gauge – the user can observe the pressure in the Cabin
  • Ultra quiet exhaust valve
  • It integrates air compressor, oxygen concentrator and cooler

Model: O-1PSHC

Specification:

  • Cabin Size: L2200*W880*H1550mm
  • Material: Stainless steel+PC engineering plastics
  • Hatch door:PC Endurance Board
  • Working pressure: 2.0ATA
  • Window number:3
  • Weight: 700kg

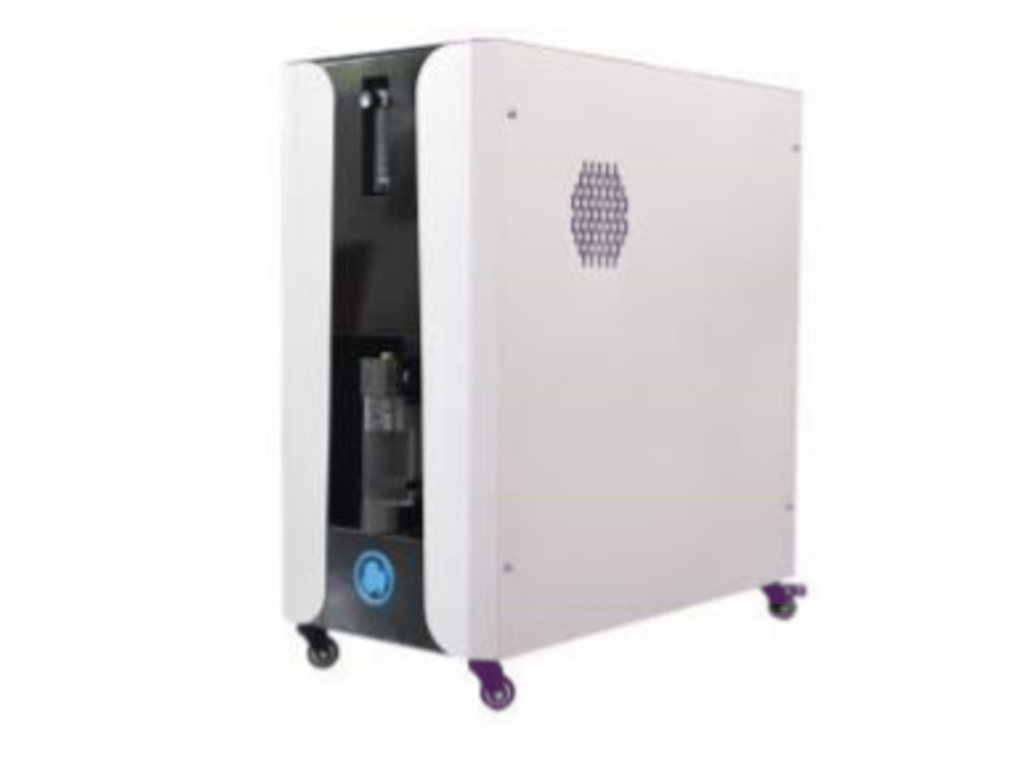

Model: 10L All-in-one machine

Specification:

  • 1*Oil Free Air Compressor
  • 1*10L Oxygen Concentrator
  • 2*Cooling Machine
  • Anion Air Purifier
  • Air Sterilizer/Anti-virus System
  • Air Filter
  • Humidity Water Cotainer
  • Oxygen Flow:10L/min
  • Air flow: 110 L/min
  • Power:1300W

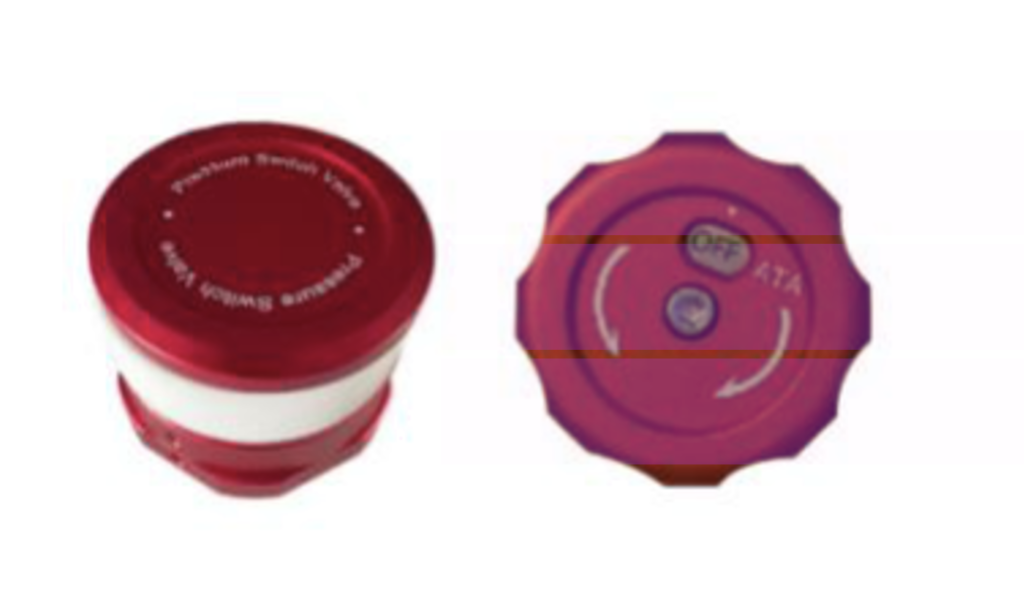

Pressure regulating valve

Specification:

pressure switch valve allows to adjust the pressure at 1.4-1.6-1.8-2.0ATA, one simple press, different pressure levels adjustable.

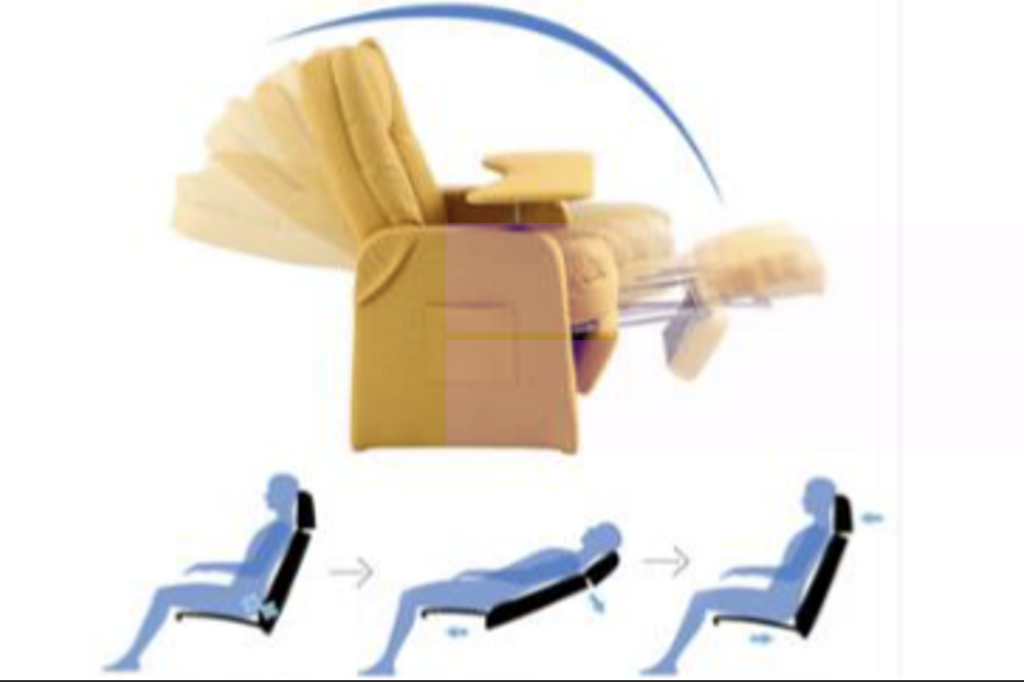

Adjustable seat

Specification:

Sitting or lying down can be controlled by the body

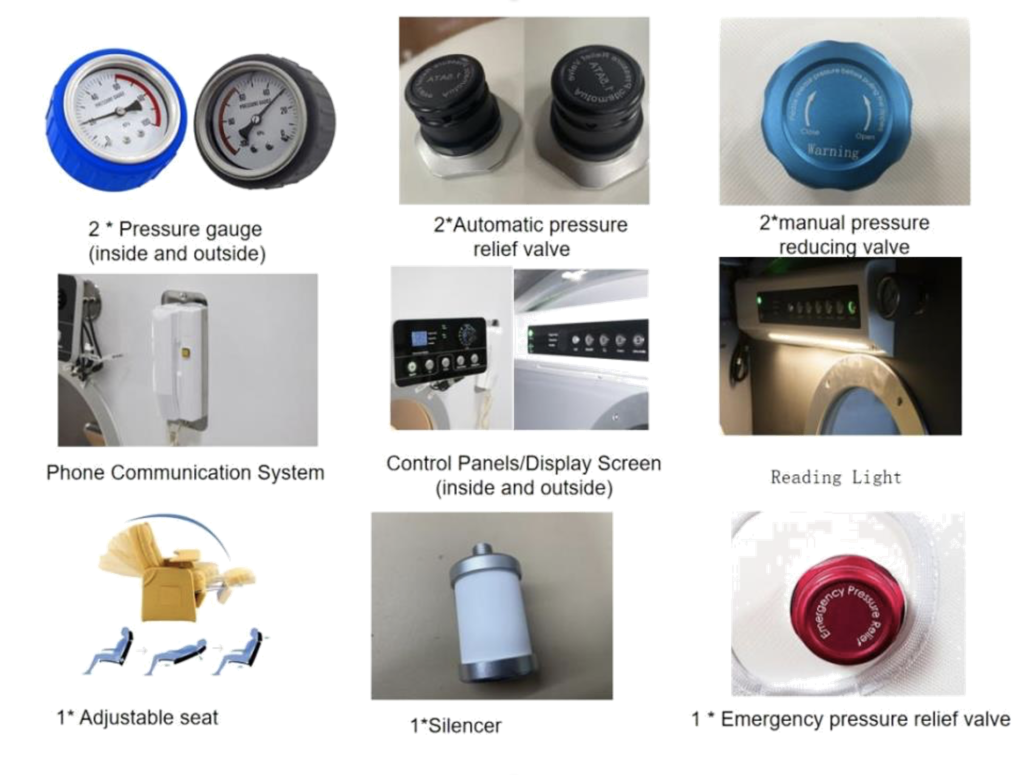

Including & Standard accessories:

Including

  • 2* manual pressure reducing valve (inside and outside)
  • 2* Automatic pressure relief valve
  • 2* muffler cap
  • 2 * Pressure gauge (inside and outside)
  • 1 * Emergency pressure relief valve 1*Phone Communication System 1*Reading Light
  • 2*Display Screen (inside and outside) 2*Control Panels (inside and outside) 1*Adjustable seat
  • 1 extra filters for free
  • 1 complimentary oxygen masks
  • Spare fuse

4.Packing Data ( 2 wooden Boxes)

Item Cabin All-in-one machine Total

Dimension 220*105*169cm 85*41*90cm /

G.W 1150kg 110kg 1250KG

N. W 700KG 90kg 790KG

Volume 4.0m³ 0.35m³ 4.35m³
