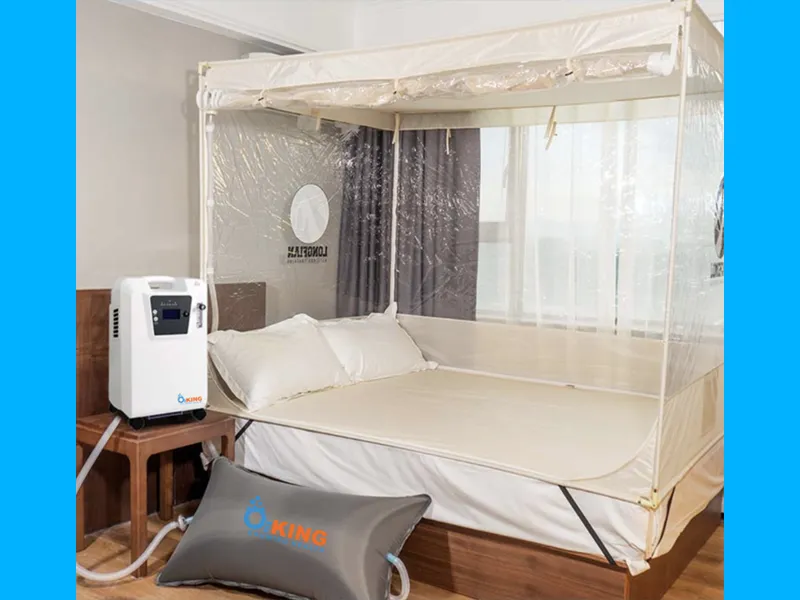

JAY-10H / JAY-20H / JAY-40H / JAY-60HHypoxic Generators
Hypoxic Generator Training System
Hypoxic training system
A configurable system for controlled altitude-simulation environments. Contact O2-KING to confirm specifications and intended-use requirements.
Specification & Configuration
| Hypoxic Flow | 100 / 200 / 400 / 600 LPM (by model) |
| Usage | Sports, Gym, Home |
| Size | 365×375×600mm / 600×400×1380mm / 760×540×1380mm / 760×540×1960mm |
| Weight | 27 KG / 95 KG / 160 KG / 280 KG |
| Voltage | 220V 50Hz |
| Power | ≤550W / ≤1100W / ≤2200W / ≤3300W |
| Sound Level | ≤50 dB / ≤55 dB / ≤58 dB / ≤60 dB |
| Outlet Pressure | 6–10 PSI (0.4–0.7 Bar) |
| Safety Facilities | Manual safety valve, Emergency Button |
| Simulated Altitude | 0–6500m (0–21,325 ft) |
| Hypoxic Concentration | 9%–18% |
| Operating System | Touch Screen |
| Optional | Pulse Oximeter, Monitor System, Training & Sleep Tent |
Perfect For
Sports CentersNational Sports BureausGymsElite Athlete TrainingAltitude Acclimatization
Key Features
- Simulates 0–6,500m Altitude
- 4 Model Sizes (100–600 LPM)
- Real-Time SpO₂, BP & Pulse Monitoring
- Central Multi-Room Monitoring
- Wrist or Finger-Clip Oximeter Included
- Optional Training & Sleep Tent
A hyperbaric oxygen chamber configuration for [private/professional] settings. View the current specifications and contact O2-KING to confirm availability, optional equipment, delivery and installation requirements.
ContactDisclaimer
Product images may show optional equipment. Specifications and availability can vary by configuration. Final specifications, included equipment, warranty, delivery and installation terms are confirmed in the individual quotation or sales agreement.
